High Cathedral Princess and Round Diamond Ring 3d Model

Item Specifications:
What is it?: This is a downloadable digital 3d model. This is not a physical item or a finished product. This is used as the first step in making the physical item.

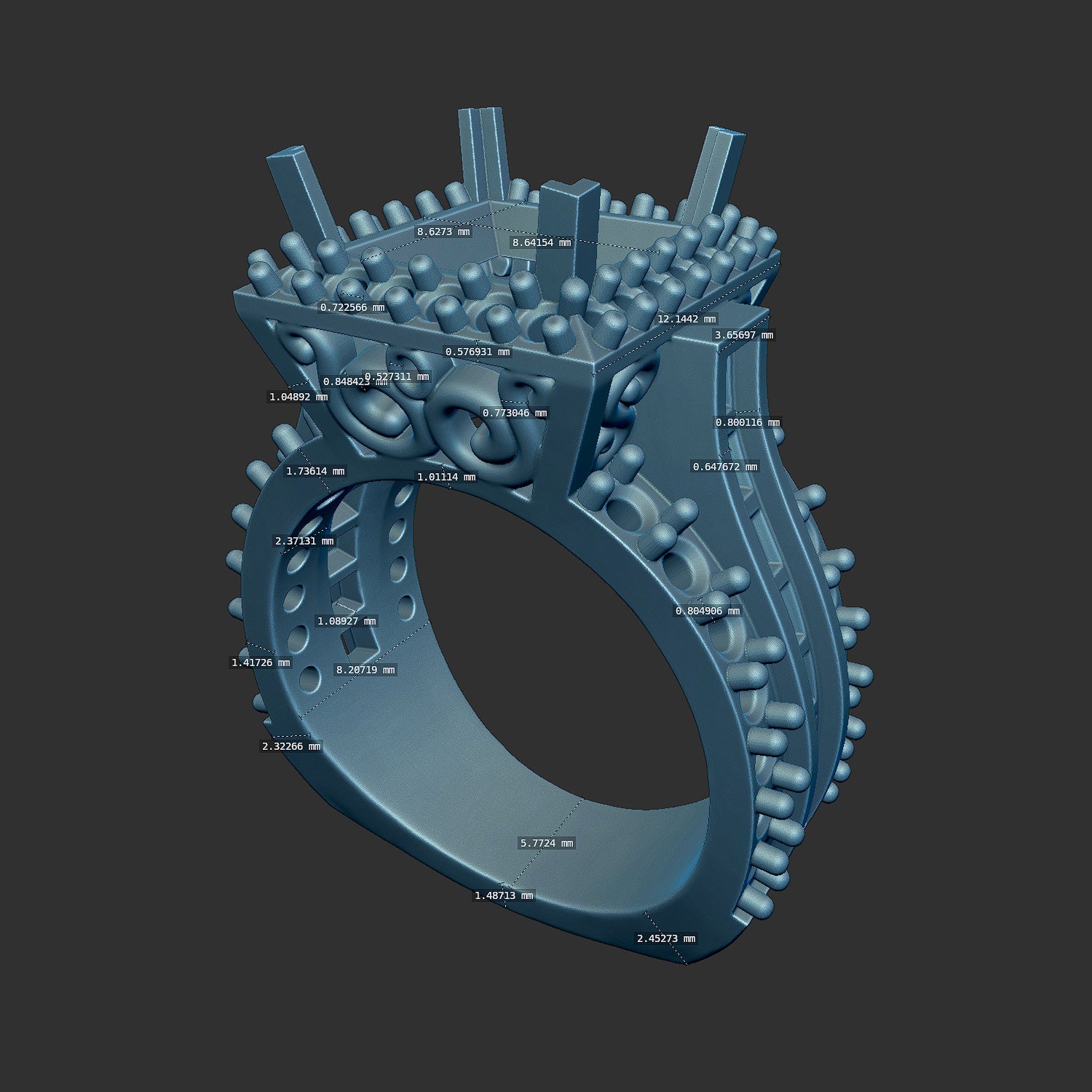

Measurements: The ring has been designed around setting an 8.5mm princess cut as the center stone. The whole top center setting is about 12mm x 12mm. The height of the center setting is 6.5mm tall from the inside finger but final height will probably be around 8-9mm taller depending on how the center stone is set. For other various measurements check out the last image within the set.

Finger Size: The model is set to a US size 8. The can easily be resized digitally or after printing.

Stones: 1- 8.5x8.5mm center princess, 14- 2.5mm princess cuts, 28- 2.2 round cuts tapering down to 2mm, and 24- 1.5mm round cuts.

Style: High Cathedral.

Weight: Approximately 13.5 grams or 8.6 dwt in 14k.

Texture: Smooth for a high polished finish.

Gender: Unisex (Male or Female).

Files: The download contains a zip file that has both the stl for the model. The model is manifold (watertight) and ready for printing. Included with the main model is the stones and the sprues if you would like to print the model fully ready for casting.

Types of Printers: This model can be printed on just about any SLA (or advanced) style of 3d printer. Here in our studio we've tested the model on a wide range of printers. These range from entry level machines such has AnyCubic or Elegoo all the way to the mid to high end machines such as the B9Creations or Formlabs.

Services: If you'd like for us to print, cast, and/or finish a model please reach out to us; it's no problem at all. We just need to know a few details (ie. finger size, rough overall size, karat / metal color, stones, etc.) to get started.

Uses: Digital models are perfect for individuals and jewelry stores alike. If you're someone who is wanting a piece custom made, picking up a digital model is a great way to save money. You can either have us or have a local store print / make the piece. If you're a store, having a collection of ready made printable files is perfect for filling out a showcase with unique designs not mass produced in wholesale catalogs.

Disclaimer: By downloading our digital item(s) you are agreeing to our Terms and Service. All digital purchases made from Moore’s Jewelers, mooresjewelers.com, and our 3rd party retail sites may not be resold, redistributed, or reuploaded by any party other than Moore’s Jewelers. Purchasing the digital file provides the rights to make and/or distribute physical versions of the item(s). It does not provide the rights to resale and/or distribute the digital file.

There are no returns for digital items.

Item Number: #333472
